Kōrero: Bush trams and other log transport

Steam hauler

Steam hauler

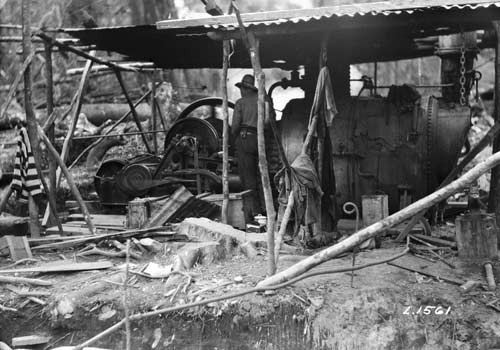

In the early 1900s, steam-powered haulers largely replaced bullock teams. This typical New Zealand hauler weighed about 8 tonnes and was mounted on a portable wooden skid. It pulled logs from where they were felled to the bush trams. Haulers comprised a boiler to raise steam (right), a steam engine driving two drums (left), and steel cables. The larger drum skidded a log along the ground, then the smaller drum pulled the cable back out. Logs were hauled for up to 500 metres, attended by a ropey, who had a dirty and dangerous job. Above the driver is a rough shelter to protect him from the weather. The location is Gamman’s Mill, Mamaku, in 1928.

Te whakamahi i tēnei tūemi

Archives New Zealand - Te Rua Mahara o te Kāwanatanga
Reference: AAQA 6394 L1561

Ngā whakaahua me ngā rauemi katoa o tēnei kōrero

Te tuhi tohutoro mō tēnei whārangi:

Paul Mahoney, 'Bush trams and other log transport - Skidding and hauling', Te Ara - the Encyclopedia of New Zealand, http://www.TeAra.govt.nz/mi/photograph/12226/steam-hauler (accessed 30 September 2020)

He kōrero nā Paul Mahoney, i tāngia i te 24 Sep 2007
