Story: Sea floor geology

Sediment cores

Sediment cores

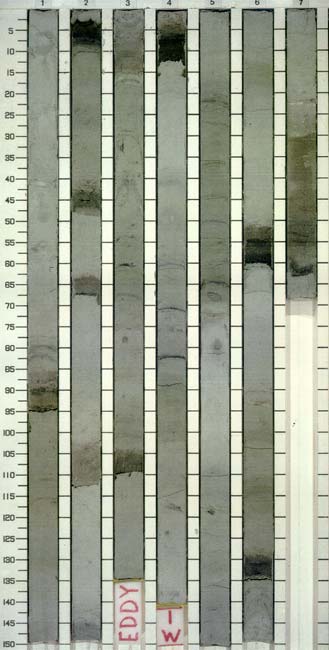

A sediment core is a cylindrical sample of material from the seabed. Corers can penetrate 50 metres or more. Because deeper sediment is older, geologists can study past events by looking at the different layers. This 9.7-metre core was taken 670 kilometres east of the North Island, from waters 4 kilometres deep. The upper part is at top left, and the bottom is halfway down column 7. The light grey areas contain fossilised plankton, and indicate changes in the ocean over thousands of years. The darker layers are ash deposits erupted from volcanoes in the Taupō region.

Using this item

NIWA – National Institute of Water and Atmospheric Research

This item has been provided for private study purposes (such as school projects, family and local history research) and any published reproduction (print or electronic) may infringe copyright law. It is the responsibility of the user of any material to obtain clearance from the copyright holder.

All images & media in this story

How to cite this page:

Keith Lewis, Scott D. Nodder and Lionel Carter, 'Sea floor geology - Exploring the sea bed', Te Ara - the Encyclopedia of New Zealand, http://www.TeAra.govt.nz/en/photograph/5630/sediment-cores (accessed 7 August 2020)

Story by Keith Lewis, Scott D. Nodder and Lionel Carter, published 12 Jun 2006
